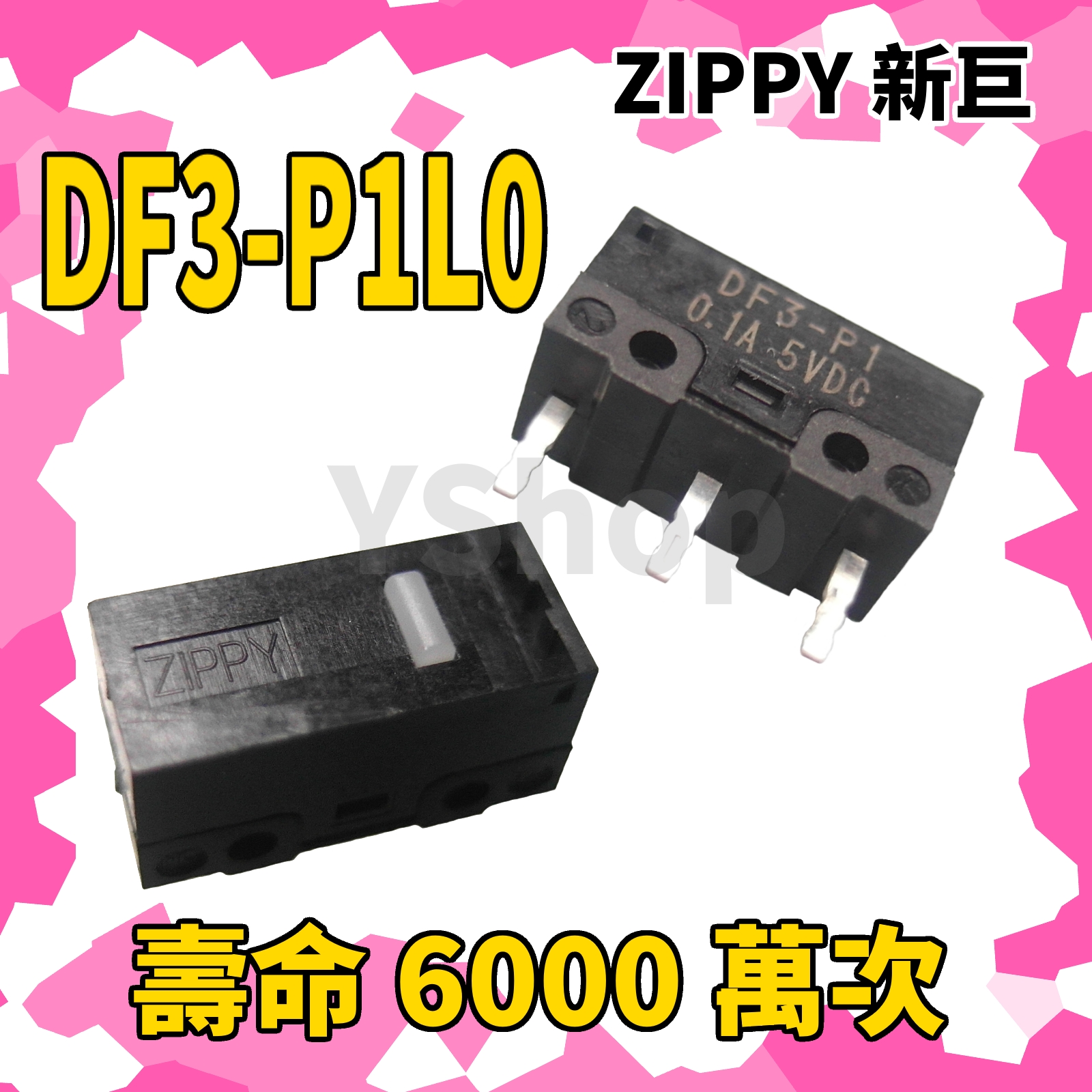

名稱：硬手感 ZIPPY DF3-P1L0 DF3-P1 電競等級 微動開關 6千萬次壽命 滑鼠微動開關 滑鼠按鍵 滑鼠開關
規格：壽命6千萬次，壓力克數 Max. 80gf (硬手感)。
尺吋：長度 12.8mm、寬度 5.8mm、高度 6.60mm。
觸發行程(PT)：Max 0.5mm
Pating：0.1A 5VDC
品牌：新巨 ZIPPY (台灣)
型號：DF3-P1L0
硬手感，適合重度電競玩家，DF3-P1L0 白點：壽命6千萬次，壓力克數80gf，手感偏重，gf數字越小按壓力道越輕。
以下規格參數資料來源參考至 Zippy：
The undersigned guarantee of the model switches is meets the following specifications.
1.Operation Characteristics
Operating Force (OF) :Max. 80 gf
Releasing Force (RF) : Min. 21 gf
Free Position (FP) : Max. 7.5 mm
Operating Position (OP) : 6.90±0.2 mm
Movement Differential (MD) : Max. 0.12 mm
Over-travel (OT) : Min. 0.2 mm
Pre-travel (PT) : Max. 0.5 mm
2. Specifications
Initial Contact Resistance
: Max. 100 mΩ.
(Measured by ohm meter –Open Voltage<1VDC, Driver current -100mA)
Before measure the switch contact resistance, please press the switch three
times on and off.
Initial Dielectric Strength : 500VAC(50-60HZ)/minute between contacts.
1500VAC(50-60HZ)/minute between Live-parts and dead metal parts.
Insulation Resistance : Min. 100 MΩ( 500 VDC/ minute ) between Live-parts and dead metal parts.
Circuit Arrangement : SPDT ( Single pole double throw )
Rating : 0.1A 5VDC
Service Life : Min. 60,000,000 operations.
Rating Load : Resistive Load
Operating Frequency : Max. 120 operations per minute
Operating application of the switch : Set the switch pushing distance from 60% to 90% of the specified OT value.
